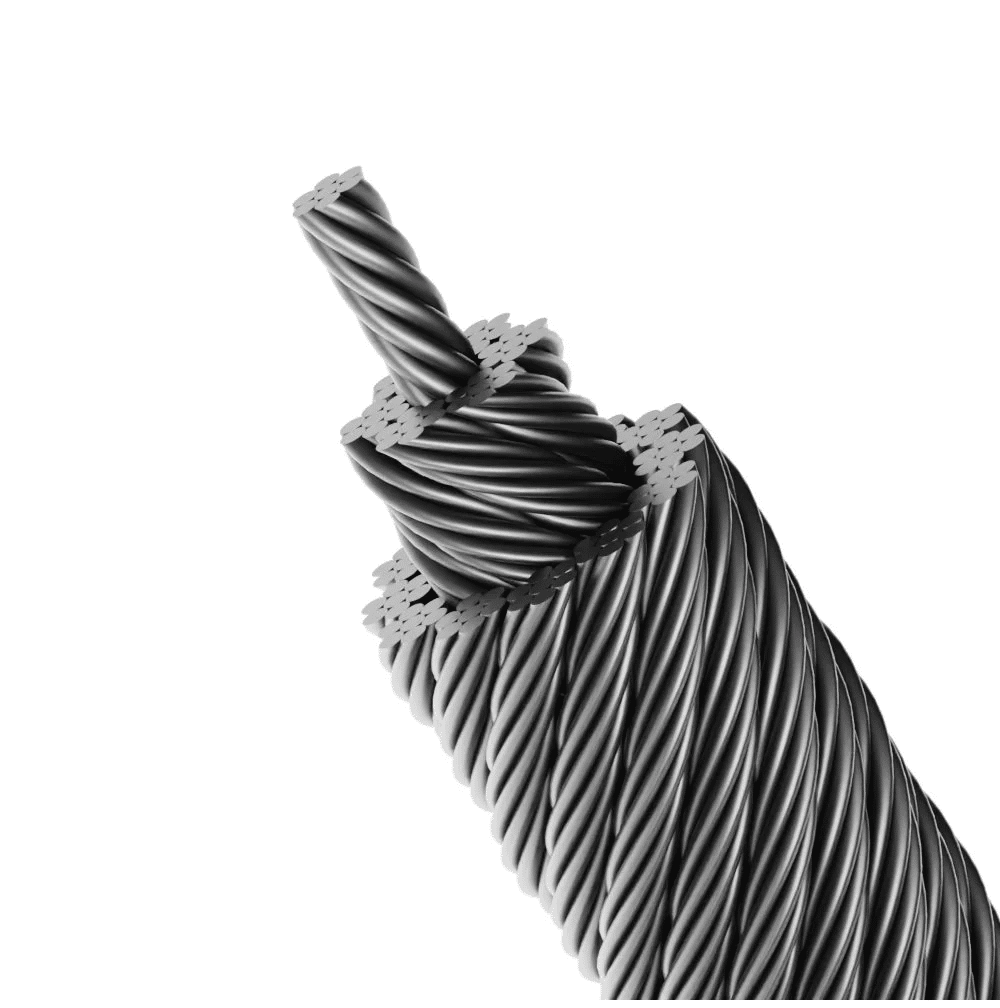

19×7 Non-Rotating Wire Rope is the ultimate solution for industries requiring high strength and flexibility. This wire rope, with its 19×7 construction, consists of 19 strands of wire, each with 7 wires, making it robust and dependable for a variety of applications. Ideal for cranes, hoists, and heavy machinery, the 19×7 Non-Rotating Wire Rope offers superior resistance to wear and tear, ensuring long-lasting durability.

Key Features:

Premium 19×7 Design: The 19×7 Non-Rotating Wire Rope is crafted for enhanced strength and stability.
High-Performance Durability: This wire rope resists rotation, ideal for industrial use.
Versatile Applications: Perfect for construction, maritime rigging, and heavy industrial tasks.

Applications:

Construction: The 19×7 Non-Rotating Wire Rope is perfect for cranes, hoists, and winches.
Maritime: Reliable for marine rigging and anchoring needs.
Industrial: Excellent for lifting, hauling, and use in heavy machinery.

Available Sizes with Breaking Loads
Nominal Diameter (mm)	Approximate Mass (kg/m)	Minimum Breaking Loads (1770 Mpa)		Minimum Breaking Loads (1960 Mpa)
Nominal Diameter (mm)	Approximate Mass (kg/m)	kN	Kg	kN	Kg
4	0.640	9.30	950	10.30	1,050
5	0.100	14.51	1,480	16.07	1,639
6	0.144	20.90	2,131	23.14	2,360
7	0.197	28.50	2,900	31.50	3,210
8	0.257	37.16	3,789	41.14	4,196
9	0.325	47.00	4,800	52.10	5,310
10	0.401	58.06	5,921	64.29	6,557
11	0.485	70.30	7,160	77.80	7,930
12	0.577	83.60	8,527	92.57	9,442
13	0.678	98.11	10,007	108.65	11,081
14	0.786	113.79	11,606	126.00	12,852
15	0.900	131.00	13,300	145.00	14,800
16	1.027	148.62	15,159	164.58	16,786
18	1.299	188.10	19,186	208.29	21,245
19	1.450	210.00	21,400	232.00	23,700
20	1.604	232.22	23,686	257.15	26,229
22	1.941	280.99	28,661	311.15	31,737
24	2.310	334.40	34,109	370.30	37,770
26	2.711	392.46	40,030	434.59	44,327
28	3.140	455.00	46,400	504.00	51,400

Ultimate 19×7 Non-Rotating Wire Rope: Strength & Flexibility for Lifting

Our 19×7 Non-Rotating Wire Rope combines strength and flexibility, ideal for cranes, hoists, and marine rigging. Built with 19 strands of 7 wires each, it delivers superior durability for construction, maritime, and industrial applications. Designed to resist wear and rotation, this wire rope ensures dependable performance for heavy-duty lifting and hauling tasks.
