Sizes Available

Nominal diameter of wire rope(mm)	Wire rope reference weight(kg/100m)			Steel wire rope nominal tensile strength(MPa)
				1570		1670		1770		1870
				Minimum breaking force of steel(kN)
	natural fiber corewire rope	synthetic fiber corewire rope	steel corewire rope	fiber corewire rope	steel corewire rope	fiber corewire rope	steel corewire rope	fiber corewire rope	steel corewire rope	fiber corewire rope	steel corewire rope
6	12.6	12.4	13.9	18.8	20.3	20	21.6	21.2	22.9	22.4	24.2
7	17.2	16.9	19	25.5	27.6	27.2	29.4	28.8	31.1	30.4	32.9
8	22.5	22	24.8	33.4	36.1	35.5	38.4	37.6	40.7	39.7	43
9	28.4	27.9	31.3	42.2	45.7	44.9	48.6	47.6	51.5	50.3	54.4
10	35.1	34.4	38.7	52.1	56.4	55.4	60	58.8	63.5	62.1	67.1
11	42.5	41.6	46.8	63.1	68.2	67.1	72.5	71.1	76.9	75.1	81.2
12	50.5	49.5	55.7	75.1	81.2	79.8	86.3	84.6	91.5	89.4	96.7
13	59.3	58.1	65.4	88.1	95.3	93.7	101	99.3	107	105	113
14	68.8	67.4	75.9	102	110	109	118	115	125	122	132
16	89.9	88.1	99.1	133	144	142	153	150	163	159	172
18	114	111	125	169	183	180	194	190	206	201	218
20	140	138	155	208	225	222	240	235	254	248	269
22	170	166	187	252	273	268	290	284	308	300	325
24	202	198	223	300	325	319	345	338	366	358	387
26	237	233	262	352	381	375	405	397	430	420	454
28	275	270	303	409	442	435	470	461	498	487	526
30	316	310	348	469	507	499	540	529	572	559	604
32	359	352	396	534	577	568	614	602	651	636	687
34	406	398	447	603	652	641	693	679	735	718	776
36	455	446	502	676	730	719	777	762	824	805	870

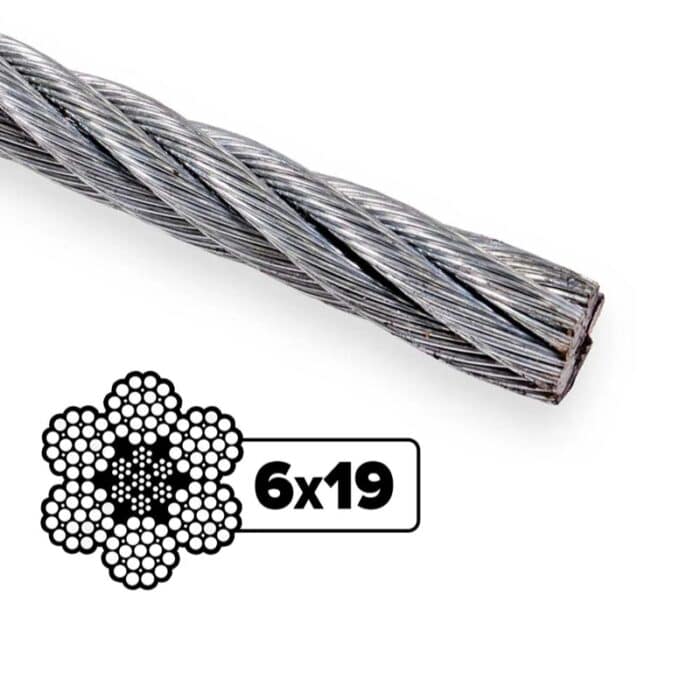

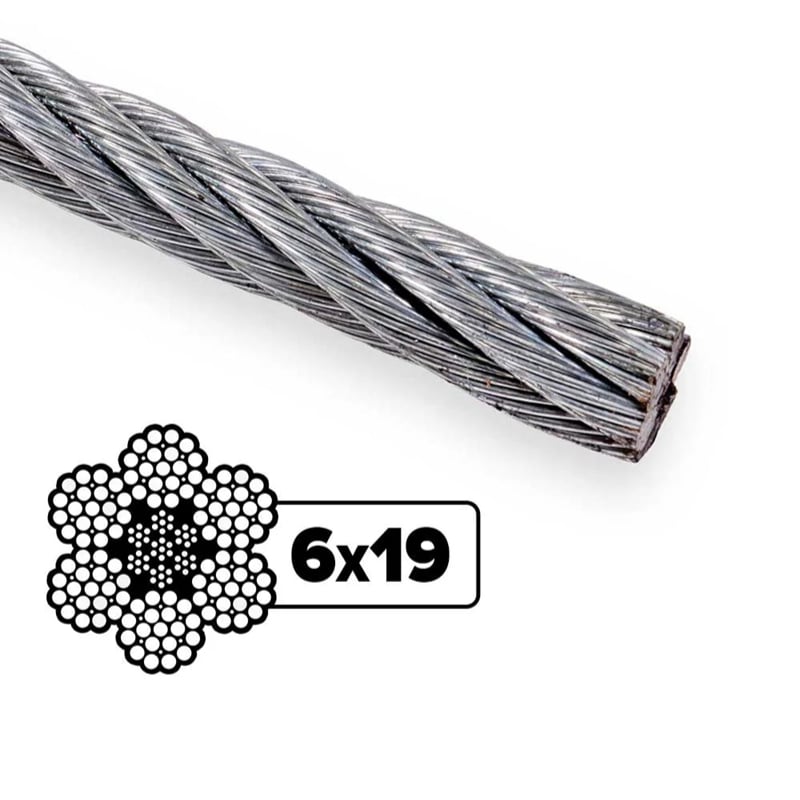

6X19 GALVANISED STEEL WIRE ROPE

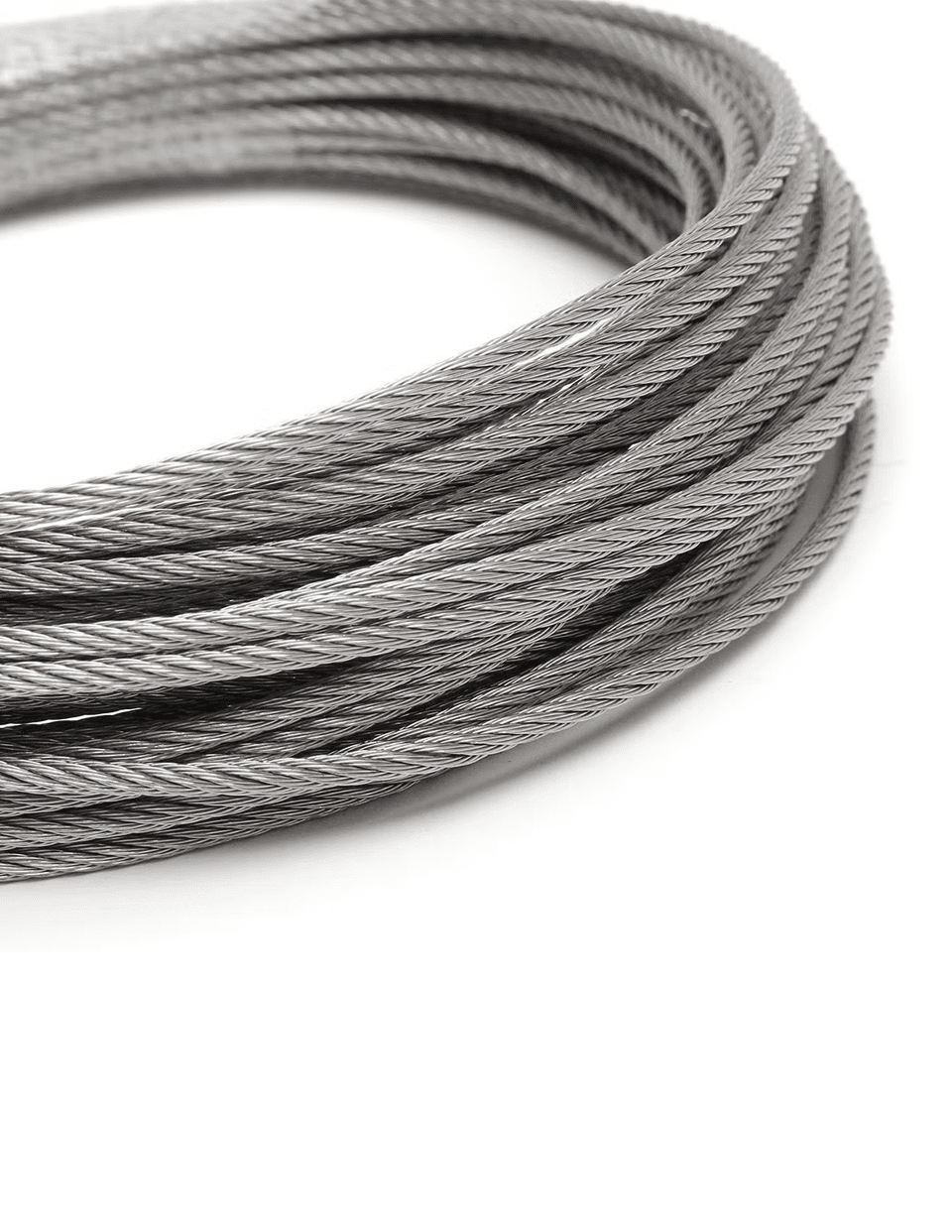

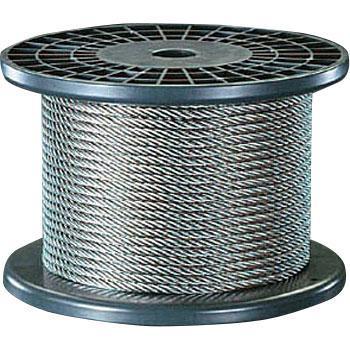

Galvanized Steel Wire Rope

At Babji International Co., we offer high-quality galvanized steel wire rope designed for exceptional durability and strength. Our wire rope is coated with a protective layer of zinc, providing superior resistance to corrosion and wear. Perfect for construction, marine, and industrial applications, it combines resilience with flexibility, making it a reliable choice for a wide range of

Order Now!

Category: Hardware

Description

Nominal diameter of wire rope(mm)	Wire rope reference weight(kg/100m)			Steel wire rope nominal tensile strength(MPa)
				1570		1670		1770		1870
				Minimum breaking force of steel(kN)
	natural fiber corewire rope	synthetic fiber corewire rope	steel corewire rope	fiber corewire rope	steel corewire rope	fiber corewire rope	steel corewire rope	fiber corewire rope	steel corewire rope	fiber corewire rope	steel corewire rope
6	12.6	12.4	13.9	18.8	20.3	20	21.6	21.2	22.9	22.4	24.2
7	17.2	16.9	19	25.5	27.6	27.2	29.4	28.8	31.1	30.4	32.9
8	22.5	22	24.8	33.4	36.1	35.5	38.4	37.6	40.7	39.7	43
9	28.4	27.9	31.3	42.2	45.7	44.9	48.6	47.6	51.5	50.3	54.4
10	35.1	34.4	38.7	52.1	56.4	55.4	60	58.8	63.5	62.1	67.1
11	42.5	41.6	46.8	63.1	68.2	67.1	72.5	71.1	76.9	75.1	81.2
12	50.5	49.5	55.7	75.1	81.2	79.8	86.3	84.6	91.5	89.4	96.7
13	59.3	58.1	65.4	88.1	95.3	93.7	101	99.3	107	105	113
14	68.8	67.4	75.9	102	110	109	118	115	125	122	132
16	89.9	88.1	99.1	133	144	142	153	150	163	159	172
18	114	111	125	169	183	180	194	190	206	201	218
20	140	138	155	208	225	222	240	235	254	248	269
22	170	166	187	252	273	268	290	284	308	300	325
24	202	198	223	300	325	319	345	338	366	358	387
26	237	233	262	352	381	375	405	397	430	420	454
28	275	270	303	409	442	435	470	461	498	487	526
30	316	310	348	469	507	499	540	529	572	559	604
32	359	352	396	534	577	568	614	602	651	636	687
34	406	398	447	603	652	641	693	679	735	718	776
36	455	446	502	676	730	719	777	762	824	805	870

Additional information

Brand	USHA MARTIN

Attachment

MSDS

Download
